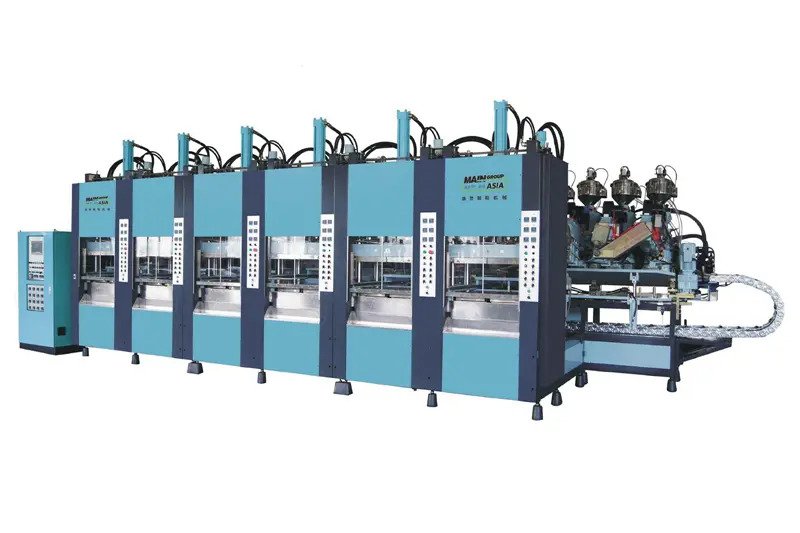

Full Automatic double colors EVA foaming injection moulding machine
描述
LINEAR MACHINES FOR PRODUCTION OF SINGLE/DOUBLE COLOR SOLES MIDSOLES AND SANDALS IN INJECTED EVA
FUNCTION：
-
LOW OPERATION HEIGHT
-
OPERATION HEIGHT IN ACCORD WITH HUMAN ENGINEERING
-
EXTRA HEIGHT OPENING STROKE
-
MOLD OPENING STROKE 350MM
-
EXTRA MOLD CLAMPING FORCE
-
2000KN
-
RAPID MOLD OPENING
-
USE THE CRANK-TYPE INSTITUTIONS INSTANTLY OPEN MOLD
-
SAVES THE ELECTRICAL ENERGY 30%
-
HYDRAULIC SERVO SYSTEM ENERGY SAVING
TECHNICAL REFERENCE
模具基站MOLD-HOLDER STATION |
N° |
2 |
6 |
8 |
10 |
||||
模具合模力MOLD CLAMPING FORCE |
kN |
2000 |
2000 |
2000 |
2000 |
||||
模具開啓行程MOLD OPENING STROKE |
mm |
350 |
350 |
350 |
350 |
||||
雙色加熱板尺寸TWO-COLOR HEATING PLATE DIMENSIONS |
mm |
310*600 |
310*600 |
310*600 |
310*600 |
||||
標準模具高度STANDARS MOLD HEIGHT |
mm |
125*330 |
125*330 |
125*330 |
125*330 |
||||
注射高度 INJECTION HEIGHT |
mm |
60*160 |
60*160 |
60*160 |
60*160 |
||||
立柱間的空間距離PASSAGE BETWEEN COLUMNS |
mm |
860 |
860 |
860 |
860 |
||||
單色注射孑L中心間的距離SINGLE -COLOR DISTANCE BETWEEN CENTERS OF INJECTION HOLES |
mm |
360 |
360 |
360 |
360 |
||||
加熱板加熱功量PLATE HEATING POWER |
kW/模 |
8 |
8 |
8 |
8 |
||||
注射器系統INJECTION UNIT |
|||||||||
注射器數量NUMBER OF INJECTION UNITS |
N° |
4 |
4 |
4 |
4 |
||||
螺杆直徑SCREW DIAMETER |
mm |
60 |
65 |
60 |
65 |
60 |
65 |
60 |
65 |
螺杆長徑比SCREW L/D RATIO |
mm |
19 |
17 |
19 |
17 |
19 |
17 |
19 |
17 |
注射容量INJECTION VOLUME |
cm3 |
1100 |
1300 |
1100 |
1300 |
1100 |
1300 |
1100 |
1300 |
注射壓力 INJECTION PRESSURE |
bar |
1100 |
900 |
1100 |
900 |
1100 |
900 |
1100 |
900 |
注射速度 INJECTION SPEED |
cm3/s |
230 |
230 |
230 |
230 |
||||
螺杆轉 ilSCREW SPEED |
r.p.m |
0-140 |
0-140 |
0-140 |
0-140 |
螺杆扭矩(最大) SCREW TOROUE(MAX) |
daN.m |
160 |
160 |
160 |
160 |
加熱區HEATING ZONES |
N° |
4 |
4 |
4 |
4 |
用電量POWER INSTALLED |
|||||
注射槍系統加熱INJECTION UNITS HEATING |
kW |
5.5X4 |
5.5X4 |
5.5X4 |
5.5X4 |
注射器移動馬達MOTOR MOVEMENT INJECTOR |
kW |
2.2 |
2.2 |
2.2 |
2.2 |
真空泵VACUUM PUMP |
kW |
4 |
4 |
4 |
4 |
加熱板HEATED PLATES |
kW |
32 |
96 |
128 |
160 |
液壓系統馬達HYDRAULIC UNIT MOTOR |
kW |
105 |
105 |
105 |
105 |
縛安髪功率TOTAL INSTALLED POWER |
kW |
59 |
223 |
255 |
287 |
平均耗能AVERAGE CONSUMPTION |
|||||
電能ELECTRICAL ENERGY |
kW/h |
30 |
40 |
50 |
60 |
空氣AIR |
NL/min |
100 |
100 |
100 |
100 |
制冷系統REFRIGERATION UNITS |
Kcal/h |
16000 |
21000 |
27000 |
30000 |
重 SWEIGHT |
|||||
净重NET WEIGHT |
kg |
30 |
40 |
50 |
60 |
機器尺寸（L*W*H） MACHINE DIMENSIONS |
m |
6.3X4.2X3.1 |
11X4.2X3.1 |
13X4.2X3 |
15.5X4.2X3.1 |
Display Of Eva Foaming Injection Molding Machine
